| Quantity: | |
|---|---|
56
Engineered for uncompromising mechanical strength, this 56mm brushless gear motor features a precision-machined outer shell that feels cool and solid to the touch. Inside, high-strength wear-resistant metal gears interlock with exact precision, drastically improving impact resistance and preventing long-term mechanical degradation.
Motion control should be felt, not heard. By optimizing gear meshing accuracy and implementing strict rotor dynamic balancing, this drive unit operates with a whisper-quiet hum. The exceptionally low vibration profile meets the strict acoustic standards required for smart home environments and indoor commercial installations.
Designed to conquer harsh operational climates, the unit maintains stable torque output across a wide temperature range. Optional high-IP rated sealing protects the internal components from moisture and dust ingress, making it a reliable power source for outdoor electric awnings or demanding industrial facilities.
The integrated transmission architecture multiplies output force while shielding the core motor from excessive mechanical shock. This unified drive unit approach allows engineers to maximize torque density within an incredibly compact footprint, simplifying overall system design and reducing installation space.
Great machinery requires controlled, deliberate force. This gear motor delivers exceptionally smooth motion profiles, eliminating the jerky starts and stops common in lesser drives. The resulting fluid movement extends the lifespan of the connected mechanical linkages and ensures consistent terminal velocity.
Eliminating carbon brush friction not only removes the distinct smell of ozone during operation but also stretches the continuous working life into thousands of hours. This wear-free design ensures consistent performance year after year without costly maintenance interventions or unexpected downtime.
Whether driving heavy-duty automated barriers or delicate precision valves, this compact powerhouse delivers reliable, efficient energy precisely where the application demands it. The solid construction and refined engineering provide peace of mind for large-scale deployments and complex automated frameworks.

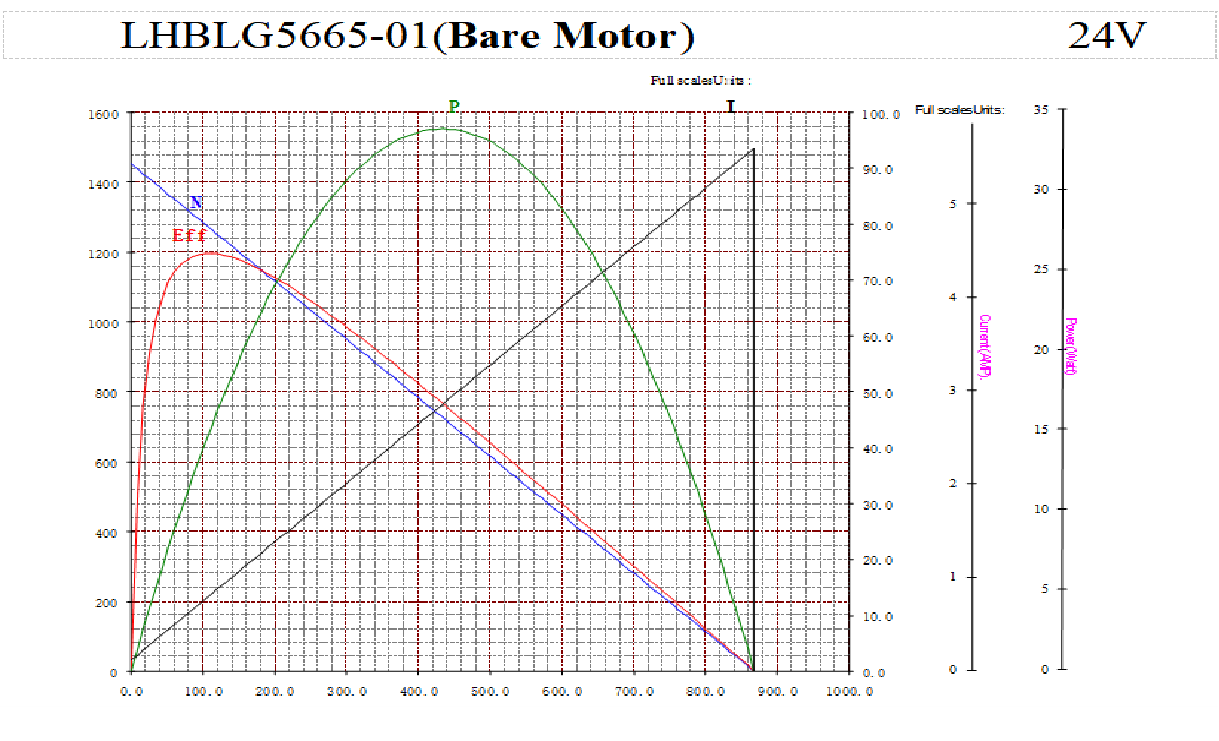

Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBLG5665-01 (Gear Ratio 220.3) | 8-26 | 24 | 7 | 0.2 | 10 | 5 | 1.5 | 18.9 | 20 | 8.00 |
1. Smart Home Appliances: From the silent glide of electric sliding doors to the precise deployment of outdoor electric awnings, this motor provides the necessary muscle. Its low-noise profile ensures smart curtains and electric window openers operate without disturbing household tranquility. Furthermore, the resilient weather-resistant options ensure outdoor installations withstand the elements effortlessly.
2. Industrial Equipment: Built to handle continuous operational stress, it serves as the dependable core for conveyor and transmission equipment. When paired with gear transmission modules or linear actuators, it delivers the consistent, controlled force required to keep assembly lines moving. Every unit complies strictly with CE, RoHS, and ISO9001 standards, facilitating smooth global export for your final engineered systems.
3. Precision Electrical Control Equipment: Accuracy is paramount for devices like electric fluid valves and light angle adjustment pan/tilt heads. This gear motor offers the exact positioning required for these delicate tasks, as well as for electric control switching mechanisms and mini impact drills. We provide extensive OEM/ODM customization, allowing adjustments to output shaft dimensions, gear ratios, mounting holes, and wiring harnesses to perfectly match your non-standard engineering projects.
4. Commercial Equipment: Reliability translates directly to profitability in commercial settings. This motor powers electric gate barriers, banking and financial equipment, ATMs, and vending machines with unwavering consistency. Supported by our automated production lines and mature supply chain, we guarantee stable, on-time delivery for large volume orders, ensuring your manufacturing schedule remains uninterrupted.
Q1: Can the same G5665 motor achieve different torque outputs for diverse project requirements?
A: Yes. We offer a comprehensive selection of standard reduction ratios. A higher reduction ratio multiplies the output torque while lowering the speed, which is ideal for heavy-duty mechanisms like electric awnings and gate barriers. Conversely, a lower reduction ratio is preferable for light-duty, faster applications such as lighting adjustments and small electric drills. Beyond standard options, our deep OEM/ODM capabilities allow us to engineer customized reduction ratios, shaft lengths, and specific voltage configurations tailored precisely to your unique mechanical constraints.
Q2: Does this motor meet the durability standards required for 24/7 operation in commercial ATMs and vending machines?
A: Absolutely. The G5665 comes standard with wear-resistant metal gears designed to withstand long-term continuous operation and high-frequency start-stop cycles, effectively minimizing mechanical wear and slippage. To guarantee this reliability across massive volume orders, every batch undergoes rigorous quality control testing, including extreme high-low temperature cycling, salt spray corrosion tests, and ultimate load lifespan evaluations. The brushless architecture eliminates carbon brush wear, achieving a continuous working life of thousands of hours for year-round, maintenance-free use in banking and supermarket equipment.
Q3: Can this motor be paired with a drive control system for equipment requiring precise positioning, and how quickly can you deliver?
A: Yes. We supply dedicated drive boards that support stepless speed regulation, precise forward and reverse rotation control, and closed-loop position adjustment. This makes the system exceptionally suited for high-precision applications like lighting adjustment pan-tilt units, electric valves, and automated actuators. To support your production timeline, our fully automated manufacturing facilities and robust supply chain ensure rapid prototyping for initial testing, followed by stable, punctual delivery of large-scale production runs, keeping your assembly lines moving without delay.
