| Quantity: | |
|---|---|
36

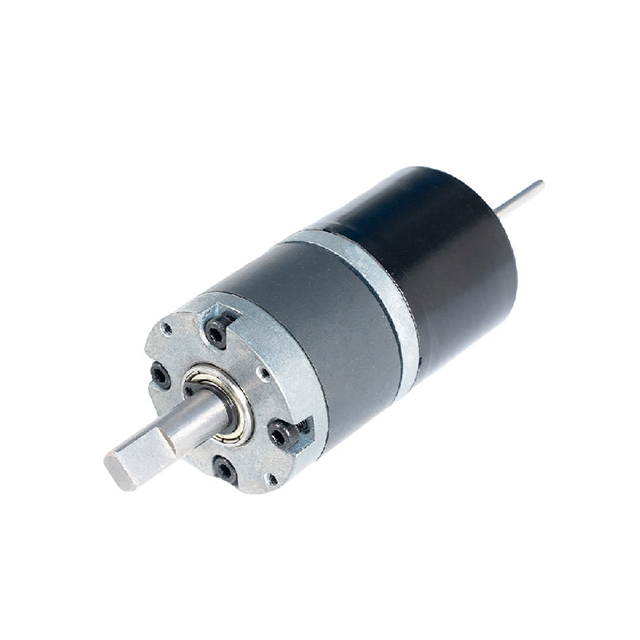

Engineered for demanding industrial and commercial environments, the LHBLG3630 Series delivers exceptional mechanical longevity and precise motion control. The cool, solid touch of its premium alloy casing reflects the rugged durability housed within. Inside, high-strength metal gears provide outstanding wear resistance, ensuring that the unit maintains its structural integrity even under continuous, heavy-load operations. By leveraging advanced CNC precision machining, every gear mesh is optimized to reduce mechanical friction, resulting in a highly efficient transmission system with a smooth, near-silent acoustic profile.
Customizable and Compatible with Complex Operating Scenarios:
Flexible speed ratios engineered for diverse operating conditions:
Multiple standard reduction ratios are readily available to match specific high-speed light-load or low-speed heavy-load requirements. Custom speed ratios are also fully supported, providing exact mechanical alignment for home automation, industrial conveying, commercial robotics, and sensitive medical applications. The precision-crafted gears ensure minimal energy loss across all ratio configurations.
Compatible with various motor types for combined performance advantages:
This gearbox integrates flawlessly with brushless motors, permanent magnet synchronous motors, and traditional brushed motors. When paired as a brushless geared motor, it offers the dual advantages of extended operational life and exceptional energy efficiency. The advanced brushless technology ensures low heat generation and stable, high-torque output even during prolonged continuous operation.
Modular architecture for streamlined maintenance and component replacement:
The motors and gearboxes function as independent, interchangeable modular units. In the event of localized mechanical wear, maintenance teams can replace individual damaged components rather than discarding the entire drive system. This intelligent design eliminates the need to disassemble the complete mounting structure, significantly reducing production line downtime and lowering long-term maintenance expenditures.
Optimized for multiple voltages and stringent environmental conditions:
The entire transmission unit can be customized to feature an ultra-quiet acoustic design, advanced dustproof sealing, and low-voltage configurations. Through specialized acoustic engineering and premium lubrication solutions, it achieves incredibly low-vibration operation. This makes it perfectly compatible with noise-sensitive environments like quiet residential spaces, harsh dusty industrial facilities, and portable battery-powered devices where efficiency is paramount.
Consistency in performance is a critical factor for large-scale equipment integration. Before any unit is approved for shipment, it undergoes a rigorous battery of extreme condition evaluations, including strict torque validation, acoustic emission monitoring, and high-low temperature resilience testing. This uncompromising approach to reliability guarantees that every motor delivers the exact electrical and mechanical output required by your engineering blueprints. The detailed specifications below outline the precise operational capabilities of the LHBLG3630 series, providing your procurement and design teams with accurate data for seamless system integration.

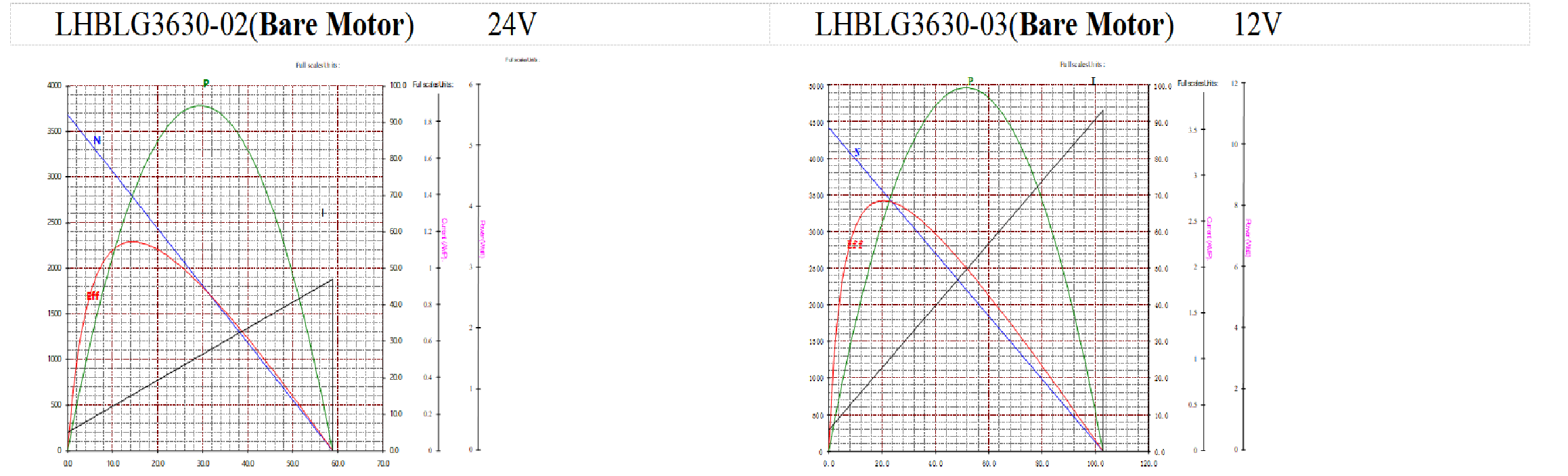

Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBLG3630-01 (Gear Ratio 48) | 5-26 | 7.4 | 91 | 0.45 | 0.378 | 77 | 1.08 | 3.05 | 2.18 | 2.5 |
LHBLG3630-02 (Gear Ratio 100) | 5-26 | 24 | 36 | 0.10 | 0.147 | 24 | 0.38 | 3.79 | 4.41 | 2.5 |
LHBLG3630-03 (Gear Ratio 27) | 5-26 | 12 | 161 | 0.25 | 0.55 | 124 | 1.1 | 7.14 | 2.47 | 2.5 |
The robust versatility of this 36mm gear motor makes it an essential drive component for engineers designing compact, motion-controlled systems. Its ability to deliver stable torque without excessive vibration ensures that adjacent sensitive electronics remain completely undisturbed during operation.
Lighting Angle Adjustment Pan/Tilt Unit & Surveillance Camera Rotation Mechanisms: Provides smooth, jitter-free rotational movement, ensuring clear video capture and precise lighting angles without mechanical hesitation.
Various Miniature Electrically Controlled Valves & Fluid Control Switch Actuators: Delivers the high starting torque necessary to overcome initial fluid stiction, guaranteeing reliable valve operation in confined pipeline spaces.
Small Intelligent Switches & Lock Electric Drive Modules: Offers long-term mechanical reliability and secure locking force, essential for smart home security and access control systems.
Portable Energy Storage Devices & Small Intelligent Pan/Tilt Unit Transmission: Maximizes battery life through highly efficient power utilization while maintaining a lightweight profile for enhanced portability.
Installation Space Limitations: For small, built-in devices such as camera pan/tilt units, small fluid valves, or personal massagers, choose a miniature, compact model (e.g., φ24mm to 36mm ranges). The internal layout of your housing will dictate the maximum allowable motor length. For large conveying equipment, choose a large-volume, high-power gear motor to handle the increased load demands.
Weight Limitations: For handheld, portable, and wearable care devices, it is vital to strictly control the overall weight to prevent user fatigue. Prioritize lightweight, integrated modules that utilize our premium alloy materials, balancing strength with a reduced physical footprint.
Installation and Fixing Methods: Differentiate between flange mounting, side mounting on a specialized bracket, and rear fixing options. The chosen method must match the device frame's opening dimensions and structural stress points. We can actively help you select the appropriate model for your product based on your specific product design requirements or by contacting our engineering team directly.
When sourcing critical drive components, supply chain stability and strict quality control are just as vital as the hardware itself. Our state-of-the-art manufacturing facility is fully equipped to handle comprehensive OEM and ODM projects, providing end-to-end service from initial blueprint evaluation and rapid prototyping to full-scale, synchronized volume production.
International Environmental & Quality Standards: Every series we produce fully complies with CE, RoHS, and ISO9001 global standards. This rigorous adherence to international compliance guarantees that your final assembled equipment can seamlessly enter global markets without regulatory friction.
Dedicated Engineering Support: Our specialized engineering team works directly with your procurement and design departments to customize shaft lengths, gear ratios, and wiring harnesses, ensuring the final delivered product perfectly matches your operational vision.
