| Quantity: | |
|---|---|
28
One-stop sourcing reduces material categories:
Complete units are supplied individually, eliminating the need for customers to purchase motors, gearboxes, and transmission components separately. This simplifies supply chain management and reduces warehousing and procurement costs. The pre-assembled unit feels remarkably solid in hand, engineered to drop directly into your existing equipment chassis without secondary modifications.
Reduced assembly time:
As a finished, integrated unit, customers only need to fix the machine body and connect the wiring upon arrival for immediate production. This eliminates the need for coaxial alignment, assembly, and debugging of separate components, increasing production line efficiency by over 60%. The tactile snap of the standardized wire harness confirms a secure electrical connection instantly.
Low overall material costs:
Standardized, batch production of integrated modules results in a lower unit price compared to purchasing motors and gearboxes separately, reducing component markups while maintaining strict dimensional tolerances across large-volume deliveries.
Continuous Operation Reliability:
Built with a brushless architecture and precision ball bearings, this design eliminates the friction and carbon dust accumulation typical of traditional brushed alternatives. Paired with wear-resistant metal and composite gears, it delivers a zero-maintenance lifespan, specifically engineered for commercial self-service equipment requiring 24/7 continuous operation under heavy loads.
Acoustic Optimization for Quiet Environments:
Through high-precision gear hobbing and an optimized internal acoustic structure, the motor operates with a low-decibel, smooth hum rather than a disruptive grinding noise. This acoustic control is essential for maintaining a professional atmosphere in quiet office lobbies, banks, and indoor retail spaces.
Precision Feedback and Intelligent Control:
Integrated Hall sensors and PWM speed regulation support provide exact positional feedback and closed-loop control. This ensures that mechanical movements—such as dispensing currency or releasing fragile products—are executed with absolute millimeter accuracy, preventing jams and operational errors.

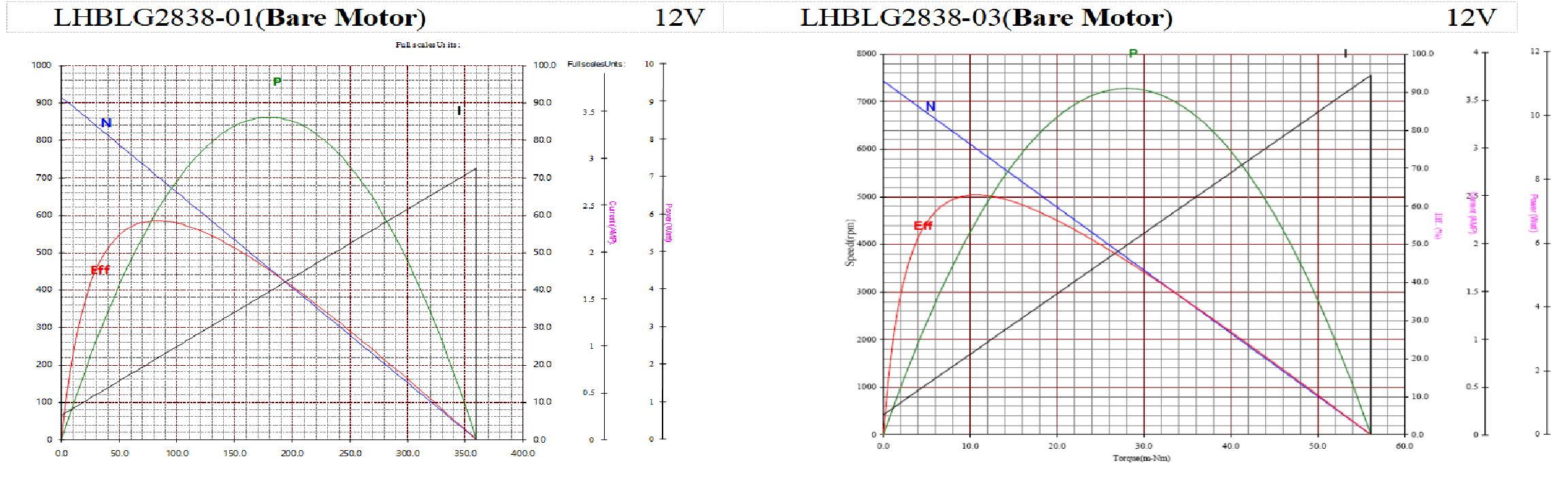

Selecting the correct specifications is critical for ensuring the longevity and efficiency of automated commercial terminals. The LHBLG2838 series operates within a versatile 8-26V range, optimized for a standard 12V input common in financial and retail equipment. Depending on the required torque and speed profile, engineers can select from three distinct gear ratios: 5.2, 24, and 51. Lower ratios provide rapid actuation suitable for lightweight conveying mechanisms, while the higher 51 ratio delivers substantial stall torque (up to 7.14 mNm) for heavier dispensing tasks. Every unit undergoes rigorous NVH (Noise, Vibration, and Harshness) testing and 100% load verification to guarantee these exact performance metrics upon delivery.
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBLG2838-01 (Gear Ratio 5.2) | 8-26 | 12 | 176 | 0.26 | 0.612 | 104 | 1.34 | 8.34 | 1.03 | 2.50 |
LHBLG2838-02 (Gear Ratio 24) | 8-26 | 12 | 65 | 0.24 | 0.750 | 45 | 0.61 | 3.53 | 3.80 | 1.6 |
LHBLG2838-03 (Gear Ratio 51) | 8-26 | 12 | 145 | 0.23 | 0.816 | 104 | 1.54 | 7.14 | 1.21 | 2.50 |
The consistent torque delivery and compact form factor make this gear motor an essential component across various commercial and financial sectors. Its reliable performance ensures that end-users experience smooth, uninterrupted service.
Commercial Office and Financial Self-Service Equipment: Powers the internal mechanisms of kiosks, ensuring reliable operation day and night without thermal degradation.
ATMs and Currency Handling: Drives the cash dispensing module, gate opening and closing, and card conveying mechanisms. The precise positional control prevents jams and ensures crisp, accurate bill delivery.
Vending Machines: Acts as the primary self-service vending machine push motor, effortlessly moving heavy beverage and snack coils with a quiet, steady rotation that won't disturb nearby environments.
Access Control Systems: Operates automatic sensor doors, community gate barriers, and shop electric access control. Provides the immediate torque required to swing heavy barriers while maintaining a controlled deceleration.
Office Printers and Copiers: Manages paper conveying and page-turning drives. The smooth power delivery eliminates paper jitter, contributing to perfect print alignment and reducing maintenance calls.
Identity and Ticketing Kiosks: Functions within self-service terminals, ID card photo booths, and card dispensing machine transmission components, where internal space is limited and mechanical reliability is paramount.
Retail Displays: Rotates supermarket display shelves and advertising light boxes silently, drawing customer attention through motion without the distraction of mechanical noise.
Operating Voltage Matching: Differentiate between low-voltage DC (3V/6V/12V/24V/36V for portable and home devices) and industrial 24V DC; for battery-powered devices, prioritize low-voltage, low-power models to maximize operational time between charges.
Control Method Selection: For reversible start/stop only: simple brushed geared motor; For speed regulation, precise positioning, and low electromagnetic interference: brushless DC geared motor (recommended); For closed-loop precise control: brushless geared motor with integrated drive board.
Energy Consumption Requirements: For battery-powered portable devices, prioritize brushless models due to low no-load loss and energy saving; for commercial devices requiring 24-hour operation, choose high-efficiency geared motors that minimize heat generation and extend system life.
Yes, we provide deep customization services to ensure the motor fits your exact mechanical constraints. Engineering teams can specify custom gear ratios, output shaft profiles (such as D-shaped or round shafts), and specific wire harness terminals. Additionally, we offer options for both built-in and external drive solutions, allowing for a drop-in replacement that perfectly aligns with your existing control architecture without requiring costly redesigns.
Every unit is manufactured under strict, standardized quality management protocols. Before leaving the facility, the motors undergo 100% load testing, high and low-temperature environmental stress tests, and accelerated aging processes. Furthermore, the LHBLG2838 series fully complies with CE, RoHS, and ISO9001 international standards. This comprehensive certification ensures that your final assembled equipment will face no regulatory hurdles during global market entry inspections, protecting your brand's reputation and supply chain integrity.
