42
Consistent Power Delivery & Environmental Resilience: Engineered for stable medium-power output, this motor is highly shock-resistant and durable. It is specifically optimized for in-vehicle temperature control systems and fluid conveying power units. Designed to adapt to a broad range of temperature and humidity conditions, it supports customizable high IP protection ratings, ensuring flawless operation even in harsh industrial environments exposed to dust and oil mist.
Optimized Acoustic Profile & Torque: Delivering sufficient torque while maintaining an exceptionally low operating noise, it produces only a quiet, smooth hum during operation. This acoustic refinement makes it ideal for continuous household and commercial applications, such as beverage stirring mechanisms, circulating air supply fans, and automatic dispensing systems where intrusive noise is unacceptable.
Clean Operation & Quality Assurance: The advanced brushless architecture entirely eliminates electrical sparks, ensuring smooth operation and uniform torque output. This meets the strict, clean, and high-precision operational requirements of sensitive medical equipment. Furthermore, every unit undergoes 100% rigorous factory inspection—including comprehensive visual and functional testing—supported by full raw material traceability to guarantee absolute consistency.
Exceptional Overload Tolerance: Featuring a strong short-term overload capacity, the internal components are built to withstand frequent start-stop impacts without degradation. This resilient mechanical structure is perfectly suited for demanding applications like handheld tools and small fluid pressurization devices that experience sudden shifts in load.
Precision Speed Control: Capable of stable, continuous operation over extended periods, the motor exhibits minimal speed fluctuations. This precise control ensures smooth, uninterrupted paper conveying, accurate conveyor pushing, and exact lens adjustments in optical devices, directly improving the end-product's reliability.

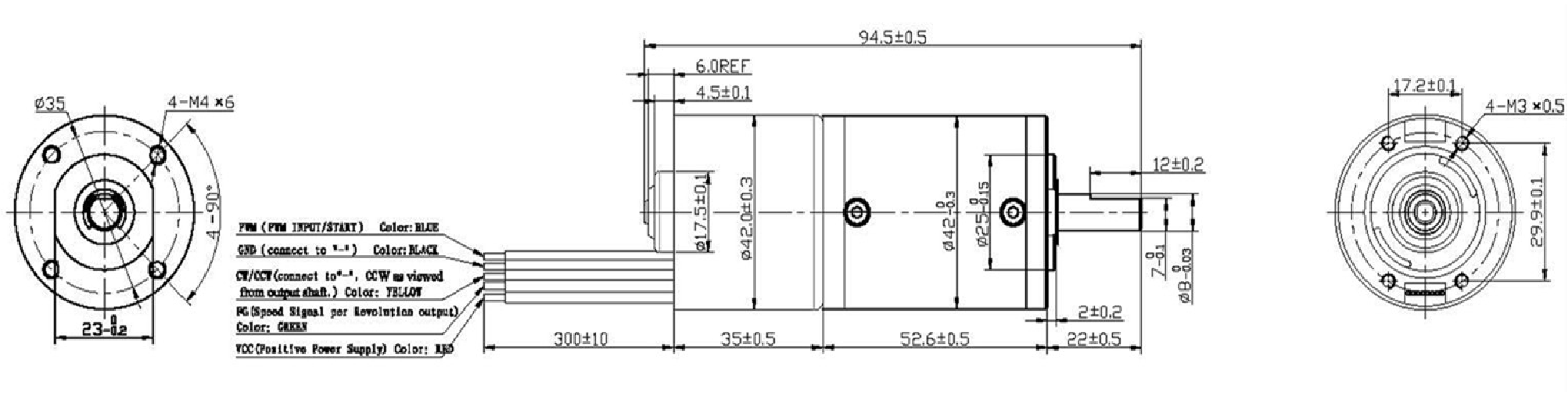

Ergonomic & Integration-Friendly Design: The compact and lightweight 42mm housing feels solid and meticulously machined, providing gentle and vibration-free power delivery. This balances the ergonomic feel of handheld devices with optimized energy efficiency for long battery life. We also provide precise maximum radial and axial load parameters, standard dimensional drawings, and clear wiring definitions to significantly reduce integration complexity for engineers.
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBLG4235-01 (Gear Ratio 294) | 8-26 | 12 | 24 | 0.36 | 5.10 | 16 | 2.27 | 8.54 | 25.2 | 3.0 |
LHBLG4235-02 (Gear Ratio 294) | 8-26 | 24 | 16 | 0.21 | 7.21 | 12 | 1.49 | 9.01 | 25.4 | 2.5 |
LHBLG4235-03 (Gear Ratio 250.7) | 8-26 | 24 | 7.8 | 0.1 | 8.03 | 5.6 | 0.4 | 4.69 | 12.36 | 2.5 |

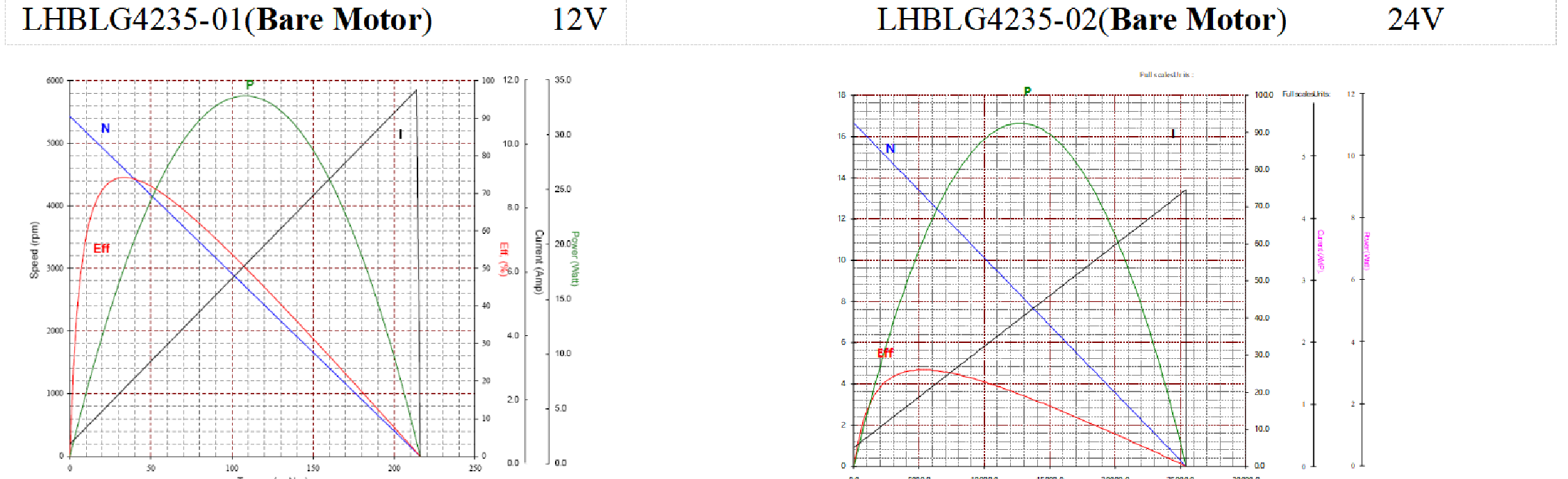

To further validate the capabilities outlined in the data above, we provide comprehensive speed-torque performance curves and detailed insulation withstand voltage test data. These metrics offer straightforward verification of the motor's smooth output capacity under varying load conditions. The robust mechanical construction ensures that engineers can rely on accurate maximum radial and axial load limits, facilitating seamless structural integration into complex machinery.
1. Automotive Components & Thermal Management: Highly effective for vehicle water pumps and radiator fans, this motor withstands the constant vibrations and temperature fluctuations inherent in automotive environments. Its reliable thermal dissipation ensures long-term operational stability on the road.
2. Advanced Home & Commercial Appliances: From premium white goods to specialized coffee machines and milk tea mixing equipment, the motor delivers the precise torque needed for thorough blending. Its whisper-quiet acoustic profile ensures it operates unobtrusively in quiet household or cafe settings.
3. Precision Medical Devices: Meeting stringent cleanliness and safety requirements, it acts as the dependable core for medical pumps, surgical instruments, and centrifuges. The spark-free brushless operation guarantees zero electromagnetic interference with surrounding sensitive diagnostic equipment.
4. Heavy-Duty Industrial Equipment: Built to endure rigorous duty cycles, it powers industrial fluid pumps, small air compressors, and portable electric screwdrivers. Its exceptional short-term overload capacity easily handles the sudden resistance spikes common in manufacturing tasks.
5. Commercial Office & Automation Machinery: Essential for the smooth, jam-free operation of printers, copiers, ATMs, and vending machines. The minimal speed fluctuation ensures precise paper feeding and mechanical dispensing, drastically reducing maintenance callouts for operators.
6. Personal Care & Grooming Devices: The lightweight, compact footprint provides an excellent ergonomic feel for handheld devices like premium hair dryers, electric shavers, and massagers. It delivers consistent, vibration-free power while maximizing battery life for cordless applications.
Q1: What are the distinct advantages of brushless gearbox motors compared to traditional brushed models?
A: Brushless gearbox motors completely eliminate the physical carbon brush structure. This results in no electrical sparks and exceptionally low electromagnetic interference, making them the superior choice for medical and precision electronic equipment. Furthermore, they operate with a much quieter acoustic footprint and experience significantly less energy loss. Their continuous working life spans 6 to 10 times longer than brushed equivalents. For long-term commercial installations and battery-powered portable devices, this translates to superior energy efficiency and virtually zero ongoing maintenance costs.
Q2: My equipment has very restrictive installation space constraints. Can you customize a miniature gearbox motor to fit?
A: Yes, absolutely. We specialize in the integrated customization of both the motor and the gearbox. Our engineering team can precisely adjust the outer diameter, overall length, and output shaft specifications to match your exact spatial limitations. Additionally, we can fine-tune the speed ratio and voltage parameters to perfectly align with your equipment's specific power and torque requirements.
Q3: Does the LHBLG4235 series comply with international regulatory and safety standards?
A: Yes. Our manufacturing processes and final products have achieved ISO9001, CE, and RoHS certifications. This comprehensive international compliance ensures that our motors meet the strict entry requirements and safety standards for both medical devices and industrial equipment globally, providing complete peace of mind for your engineering and procurement teams.
Q4: What is your production capacity and delivery timeline for custom orders?
A: We maintain a highly resilient and scalable supply chain capable of supporting everything from initial rapid prototyping to large-scale OEM and ODM manufacturing. We offer flexible minimum order quantities (MOQs) and commit to accelerated delivery schedules, ensuring that your production lines remain fully operational without unexpected delays or inventory shortages.
