36

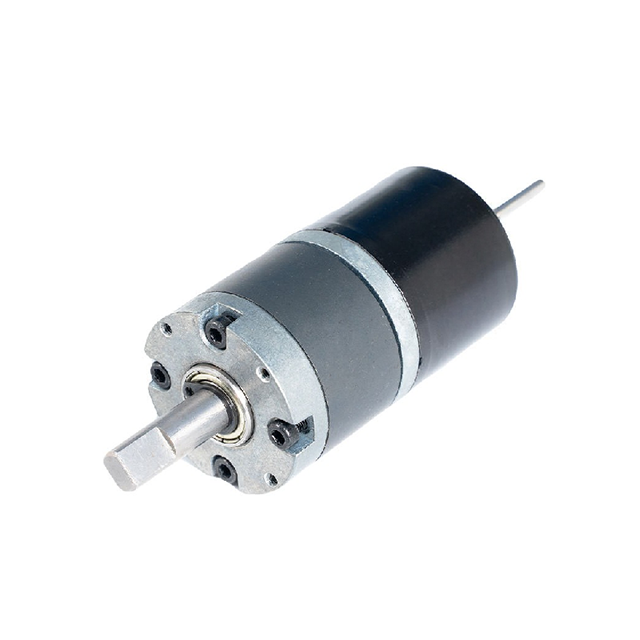

More Torque. Less Space. Longer Life. Delivering exceptional rotational force within a compact 36mm diameter, this series redefines power density for demanding industrial and commercial applications.
Built for Heavy-Duty Performance with Premium Materials
The precision gearbox dramatically increases torque output without increasing motor size, allowing equipment to handle heavier loads with smooth acceleration and reliable operation. Crafted with all-metal precision-machined gears and high-purity copper coils, the unit ensures exceptional transmission efficiency and superior heat dissipation. The cool, rigid touch of the metallic outer casing reflects its industrial-grade durability, built specifically to withstand continuous heavy-load cycles.
Designed to Last Through Rigorous Quality Control
By reducing mechanical shock and load stress, the gearbox protects critical motor components, resulting in longer service life and lower maintenance costs. Before leaving the facility, every unit undergoes strict noise acoustics testing, life-cycle evaluations, load bearing assessments, and precise coaxiality inspections. This guarantees that each motor emits only a smooth, barely perceptible hum during operation, ensuring batch-to-batch performance consistency.
Smaller Footprint for Complex Environments
An integrated motor-gearbox package simplifies machine design while reducing installation space, helping manufacturers build lighter and more compact equipment. Engineered with wide-temperature operating capabilities and optional IP-rated dust and water resistance, it maintains peak functionality even in harsh outdoor environments or complex industrial floors.
Easy System Integration & Supply Chain Reliability
Everything is packaged into one drive unit, reducing component count, simplifying assembly, and shortening production time. Backed by highly standardized and automated production lines, procurement teams benefit from strong large-volume manufacturing capacity and stable, rapid lead times, significantly reducing supply chain friction.
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBLG3650-01 (Gear Ratio 14) | 8-26 | 12 | 128 | 0.18 | 0.42 | 100 | 0.66 | 4.43 | 1.98 | 2.5 |
LHBLG3650-02 (Gear Ratio 14) | 8-26 | 12 | 116 | 0.14 | 0.154 | 104 | 0.33 | 1.68 | 1.52 | 2.5 |
LHBLG3650-03 (Gear Ratio 27) | 8-26 | 24 | 283 | 0.19 | 0.87 | 133 | 0.90 | 12.1 | 5.86 | 2.5 |
Understanding that standard specifications may not perfectly align with every specialized project, we provide comprehensive OEM and ODM customization services. Engineering teams can request tailored output shaft dimensions, specific gear ratios, and precise voltage or speed adjustments to meet unique operational requirements. Furthermore, every drive unit complies with strict international quality and environmental standards, holding CE, RoHS, and ISO9001 certifications. This ensures your final integrated equipment faces zero regulatory hurdles when distributed across global markets.
Engineered to thrive in diverse and demanding environments, the LHBLG3650 series serves as a highly reliable power unit across multiple sectors where precision and durability are non-negotiable:
Special and New Energy Supporting Equipment: Provides consistent, vibration-resistant actuation for solar tracking panels and specialized outdoor energy infrastructure where environmental exposure requires robust protection.
Portable Small Medical Auxiliary Devices: Delivers ultra-quiet, smooth motion control essential for nursing bed adjustment mechanisms and patient lifts, ensuring comfort without disruptive mechanical noise.
Small AGV (Automated Guided Vehicle) Systems: Acts as the core walking and steering power unit, offering the high torque necessary to navigate complex warehouse floors while carrying substantial payloads.
Drone Deployment & Lifting Mechanisms: Optimizes the power-to-weight ratio, providing dependable lifting force for small mounting mechanisms without adding unnecessary bulk to aerial platforms.
New Energy Vehicle (EV) Electric Accessories: Ensures reliable, long-lasting operation for vehicle curtains, automated seat adjustments, and electric trunk support rods, enhancing the end-user experience through seamless mechanical integration.
1. What are the differences between brushed plastic gear motors and brushless metal gear motors?
Short-term low cost vs. Application match: Brushed plastic gear motors are suitable for inexpensive small appliances and disposable equipment where longevity is not a primary concern.
Long-term overall low cost (TCO): Brushless metal gear motors are highly energy-efficient, require significantly less frequent replacement, and maintain an exceptionally low failure rate. This makes them the definitive first choice for commercial, industrial, and high-end intelligent equipment where operational downtime must be minimized.
Integrated vs. Separate components: Integrated gear motors, featuring a unified design for the motor and gearbox, are highly preferred by engineers. This factory-aligned integration avoids common issues such as poor coaxiality, harmful resonance, and oil leakage that frequently occur with customer self-assembly.
2. What level of technical support and warranty do you provide for large-scale procurement?
Comprehensive Warranty & Engineering Guidance: We offer robust warranty policies to protect your investment. More importantly, our professional engineering team provides one-on-one technical support, assisting your engineers with precise motor selection, prototype testing, and system integration troubleshooting to ensure flawless operation.
