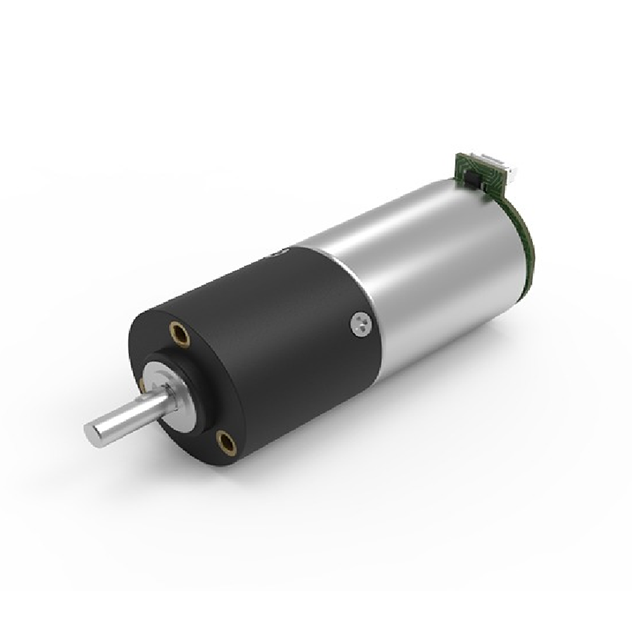

LHBLG2418 Series 24MM High Torque Brushless DC Gear Motor

Product Advantage

The LHBLG2418 Series 24MM High Torque Brushless DC Gear Motor is engineered to solve the most demanding space and power constraints in modern device design. By combining advanced magnetic circuitry with precision gear reduction, this motor provides an exceptional balance of continuous force and energy efficiency. Every unit is constructed with premium wear-resistant gears and superior-grade bearings, ensuring a near-silent acoustic profile and a smooth tactile feedback during operation, which translates directly into a premium user experience for the final product.

• Optimized Energy Consumption (0.3W–5W): Designed specifically for battery-operated and energy-conscious systems, the ultra-low power draw significantly extends operational cycles between charges. This efficiency reduces the thermal footprint of the motor, preventing overheating in tightly packed enclosures.

• Ultra-Lightweight Architecture (60g): Weighing merely 60 grams, this compact powertrain eliminates unnecessary bulk. It empowers product designers to create slimmer, more ergonomic handheld devices without sacrificing mechanical output, reducing the overall shipping weight and material costs of the finished goods.

• Exceptional High Torque Output: Engineered to deliver significantly higher torque at low speeds, this motor effortlessly overcomes initial friction and handles demanding load applications. The precision-machined gearbox minimizes mechanical loss, ensuring maximum rotational force is transferred directly to the driven components.

• Extended Motor Lifetime & Durability: The integration of a brushless architecture with a meticulously crafted gear reduction system minimizes mechanical stress across all moving parts. This drastically improves overall durability, extending the continuous working life to 6-10 times that of traditional alternatives, thereby virtually eliminating maintenance requirements.

• Stable Low-Speed Performance & Advanced Control: Fully compatible with Hall sensors and PWM speed control, the motor provides smooth, precise motion with excellent speed consistency. This closed-loop management capability ensures minimal vibration, making it ideal for precision instruments requiring exact positioning.

• Gentle Mechanical Operation: Programmed for cushioned starts and stops, the motor protects sensitive internal equipment from sudden jerks. This gentle acceleration profile reduces shock and wear on connected mechanical linkages, preserving the structural integrity of the entire assembly.

• Rigorous Quality Control & Global Compliance: Every motor undergoes strict noise evaluations, load lifecycle testing, and extreme temperature aging processes to guarantee absolute consistency across large procurement volumes. Furthermore, the materials comply with CE and RoHS standards, facilitating frictionless global export for your final consumer or medical devices.

Technical Parameters

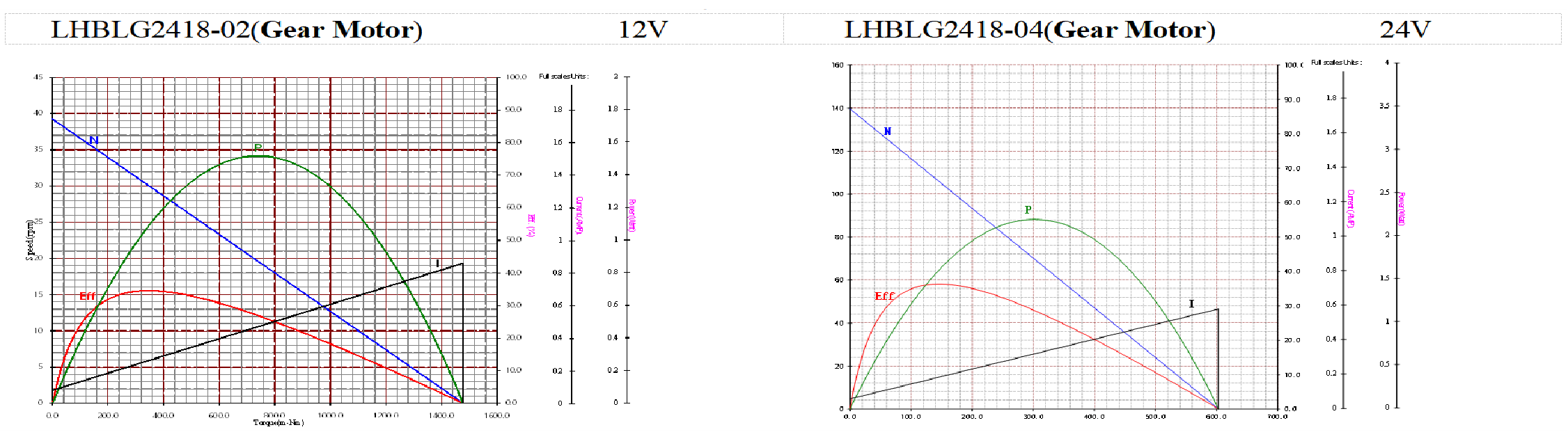

The following data sheet details the precise electrical and mechanical specifications of the LHBLG2418 series across various gear ratios. These parameters reflect steady-state performance under controlled conditions. The consistent voltage range of 8-26V across all models ensures versatile integration into multiple power architectures, while the varying gear ratios (from 46.9 to 226) allow engineers to select the exact speed-to-torque profile required for their specific mechanism.

Product Uses

Application: Smart Home & Compact Consumer Devices

Thanks to its wide operating temperature range and robust dust and moisture protection design, this drive unit thrives in complex and unpredictable environments. Whether exposed to the steam of a kitchen or the dust encountered by floor-cleaning devices, it maintains reliable performance.

• Smart Window Systems: Ideal for electric curtains, automatic window openers, and motorized blind lifting systems. The motor's silent operation ensures that automated adjustments do not disturb the acoustic comfort of residential or office spaces.

• Smart Furniture: Powers motorized sliding mechanisms for wardrobes, cabinets, and hidden storage systems. The high low-speed torque easily handles heavy wooden or glass panels, providing a smooth and luxurious glide.

• Kitchen Appliances: Provides the necessary driving force for meat grinders, high-speed blenders, food processors, and automatic seasoning dispensers. Its sealed gear housing resists moisture and oil ingress common in culinary environments.

• Cleaning Robots: Functions as the reliable core for drive and lifting systems in robotic vacuum cleaners and window-cleaning robots. The dust-resistant build ensures uninterrupted navigation and powerful suction positioning.

• Smart Pet Care Devices: Drives automatic pet feeders, self-cleaning litter systems, and pet grooming rollers. The long lifespan guarantees that automated pet care routines run flawlessly day after day without mechanical failure.

• Personal Care & Wellness Equipment: Perfect for portable massage devices, neck massagers, and full-body massage systems with vibration and kneading mechanisms. The 60g lightweight profile keeps handheld devices comfortable for extended user sessions.

FAQ

Q1: What are the advantages of brushless gearbox motors compared to brushed models?

A: Brushless gearbox motors eliminate the carbon brush structure entirely. This fundamental design shift results in zero electrical sparks and remarkably low electromagnetic interference, making them the preferred choice for sensitive medical devices and precision electronic equipment. Furthermore, they operate with a significantly reduced acoustic footprint and minimal energy loss. Their continuous working life spans 6 to 10 times longer than traditional brushed models, rendering them highly energy-efficient for long-term commercial deployments and battery-powered portable devices, all while demanding virtually zero maintenance.

Q2: My equipment has very limited installation space and non-standard connection requirements. Can you customize a miniature gearbox motor?

A: Yes, we provide comprehensive OEM and ODM customization services tailored to your specific spatial and mechanical constraints. We support integrated modifications of both the motor and the gearbox. This includes precise adjustments to the outer diameter, overall length, output shaft dimensions (such as D-cut, threaded, or custom lengths), wire harness interfaces, and operating voltage. For example, the base B2418G model weighs only 60g with a power range of 0.3W-5W, making it highly adaptable for compact built-in devices like gimbals, miniature valves, and handheld massagers. We can meticulously calibrate the gear reduction ratio and control parameters to perfectly match your equipment's unique load and speed requirements.

Q3: How do you guarantee the reliability and consistency of these motors for large-scale production?

A: Consistency is achieved through a strictly controlled manufacturing and testing protocol. Every production batch undergoes comprehensive evaluations, including decibel-level noise testing, dynamic load lifecycle testing, and extreme high-low temperature aging tests. This ensures that every unit delivers the exact same torque, speed, and efficiency characteristics, providing you with absolute peace of mind when scaling up your product lines.
