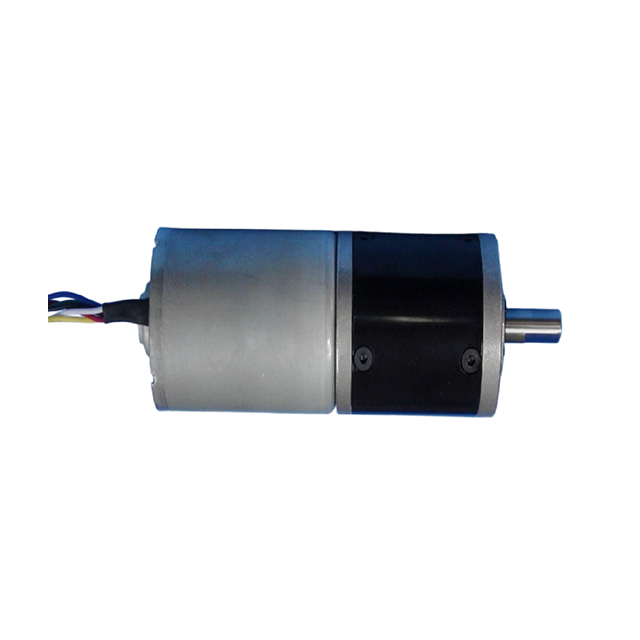

The high reduction ratio of this 42mm brushless DC gear motor enables inherent self-locking and anti-slip functionality without requiring external braking mechanisms. This delivers ample, sustained torque for the smooth, judder-free operation of heavy architectural elements like automated sliding doors, smart windows, and oversized sunshades. Engineered with precision-machined metal housing and internal acoustic dampening, its whisper-quiet operation makes it exceptionally suited for long-term, intermittent use in premium residential or acoustic-sensitive environments.
Operating efficiently within a versatile power range of 10 to 40 watts, the motor assembly boasts exceptional impact resistance against sudden mechanical shocks. It integrates flawlessly with lifting, pushing, and rotating mechanisms within automated production lines. The compact, integrated structural design eliminates the need for bulky external gearboxes, significantly simplifying your overall transmission layout and reducing assembly time on the factory floor.
Advanced electromagnetic design ensures precise speed control and a highly stable power output profile, free from unexpected RPM drops. This exactness allows the motor to adapt perfectly to precision fluid valve flow regulation, where micro-adjustments are critical. Furthermore, the robust internal copper winding can safely handle short-term overload conditions, providing the sudden bursts of torque required by handheld, small-scale power tools without risking thermal damage.
Built for demanding duty cycles, this unit supports stable, 24/7 continuous operation. The core utilizes high-strength, wear-resistant metal planetary gears and a precision-machined outer shell, preventing gear tooth wear and mechanical slippage even under severe stress. Every unit undergoes rigorous noise, load, and thermal rise testing before dispatch, ensuring it meets the stringent requirements of high-frequency start/stop sequences and year-round uninterrupted use in commercial vending or access control equipment.
Delivering sufficient output torque to simultaneously drive multiple heavy-duty massage rollers, the motor provides robust, penetrating, and consistent mechanical power. The smooth energy transfer eliminates the jerky movements often found in lower-grade motors, making it the ideal driving force for high-end, full-body massage therapy equipment where user comfort and mechanical reliability are paramount.
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBLG4260-01 (Gear Ratio 25) | 8-26 | 24 | 202 | 0.32 | 1.7 | 157 | 1.95 | 28.03 | 7.7 | 3.0 |
LHBLG4260-02 (Gear Ratio 100) | 8-26 | 24 | 28 | 0.27 | 3.03 | 24 | 0.69 | 7.68 | 23 | 2.5 |
LHBLG4260-03 (Gear Ratio 222) | 8-26 | 24 | 14 | 0.22 | 7.01 | 12 | 0.78 | 9.02 | 52.3 | 2.5 |
1. Smart Home Appliances: Powering the next generation of residential automation, this motor effortlessly drives electric sliding doors, electric window openers, smart curtains, and heavy-duty outdoor electric awnings. Its quiet profile ensures living spaces remain undisturbed while providing the necessary torque to move large fixtures against wind resistance.
2. Industrial Equipment: Engineered for the factory floor, it acts as the reliable core for conveyor and transmission equipment. It pairs perfectly with matching gear transmission modules and linear actuators, ensuring precise material handling and positioning in automated assembly environments.
3. Precision Electrical Control Equipment: The motor's exact speed regulation makes it indispensable for electric fluid valves and electric control switching mechanisms where exact flow or state changes are critical. It also provides the smooth, micro-stepping required for light angle adjustment pan/tilt heads and the durable torque needed for mini impact drills.
4. Commercial Equipment: Designed to endure high-traffic usage, it guarantees the responsive operation of electric gate barriers and turnstiles. It is equally reliable inside banking and financial equipment, ATMs, and vending machines, where mechanical failure is not an option and continuous uptime is expected.
5. Personal Care Devices: Providing deep, consistent kinetic energy, it is the preferred choice for high-power vibration massagers and premium therapeutic chairs, delivering soothing, uninterrupted force without overheating during extended sessions.
Q1: Will the gearbox motor automatically slide down or lose its position after a sudden power outage?
A: Not necessarily; the outcome depends entirely on your selected reduction ratio and internal gear structure. High-ratio metal planetary gearboxes possess an inherent reverse self-locking function. This physical resistance prevents the dangerous sliding or dropping of heavy lifting tables, medical beds, and electric gates immediately after a power failure. Conversely, low-ratio micro plastic gears lack this self-locking capability. If your application requires strict anti-fall protection, please inform our engineering team during the selection process. We offer comprehensive OEM/ODM customization—including specific voltage, speed, output shaft dimensions, and wiring harnesses—allowing us to prioritize and tailor a self-locking gearbox solution specifically for your non-standard equipment assembly.
Q2: What are the distinct operational advantages of brushless gearbox motors compared to traditional brushed models?
A: Brushless gearbox motors completely eliminate physical carbon brushes from their design. This absence means there are no electrical sparks generated during rotation, resulting in exceptionally low electromagnetic interference (EMI)—a critical requirement for sensitive medical devices and precision electronic testing equipment. Furthermore, they operate with significantly lower acoustic noise and minimal thermal energy loss. Because there are no brushes to wear out, their continuous working life is typically 6 to 10 times longer than that of standard brushed models. This makes them vastly more energy-efficient for long-term commercial deployments and battery-powered portable devices, virtually eliminating ongoing mechanical maintenance costs and reducing total cost of ownership.
To ensure your supply chain remains uninterrupted and your end-products meet global compliance, our manufacturing facility operates under rigorous international standards. Every LHBLG4260 series motor is produced in full compliance with CE, RoHS, and ISO9001 certifications, providing a solid foundation for your equipment to be exported worldwide without regulatory friction.
Backed by mature, highly automated production lines, we offer a flexible Minimum Order Quantity (MOQ) policy that supports both initial prototyping phases and stable, large-scale mass production with guaranteed on-time delivery. We understand that the physical integrity of precision motors during transit is vital. Therefore, we utilize industrial-grade packaging solutions, including custom-molded, shock-absorbing trays, moisture-resistant barriers, and anti-static cartons. This meticulous approach to logistics ensures that whether shipped via air freight or ocean container, your gear motors arrive in pristine, ready-to-assemble condition, safeguarding your production schedules.
