36

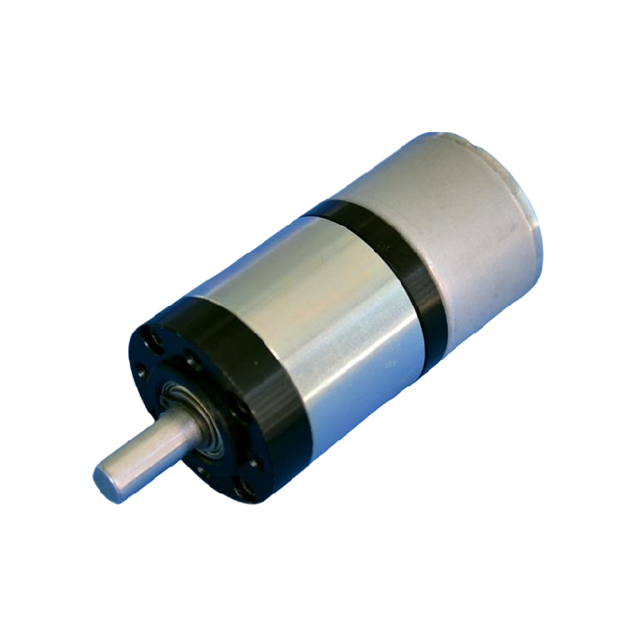

Engineered for absolute reliability, the LHBLG3626 Series 36MM Brushless DC Gear Motor integrates premium materials and precise mechanical design to solve the most demanding power transmission challenges. When handling the motor, the solid construction and precisely machined casing reflect the exacting engineering standards applied to every single unit.
Rigid gear meshing completely eliminates the problems of stretching, slippage, and failure typically associated with standard belt and chain drives. This direct mechanical engagement ensures consistent, uninterrupted power output over long-term operation. The tactile feedback of the motor reveals a vibration-free operation, ensuring end-users feel only smooth, continuous performance.
By utilizing high-purity copper coils and performance magnetic steel paired with precision bearings, the core material selection drastically elevates thermal stability and overall lifespan. The high-rigidity gears are exceptionally wear-resistant and fatigue-resistant, effortlessly supporting the all-weather, continuous operation required by factory production lines and demanding commercial equipment.
The quiet hum of the precision-ground gears is a direct testament to minimal internal friction. These finely tuned gears, combined with a sealed lubrication structure that locks in specialized grease, ensure stable transmission efficiency. This design significantly lowers power loss compared to simple belt drives, yielding exceptional energy savings over years of continuous use.

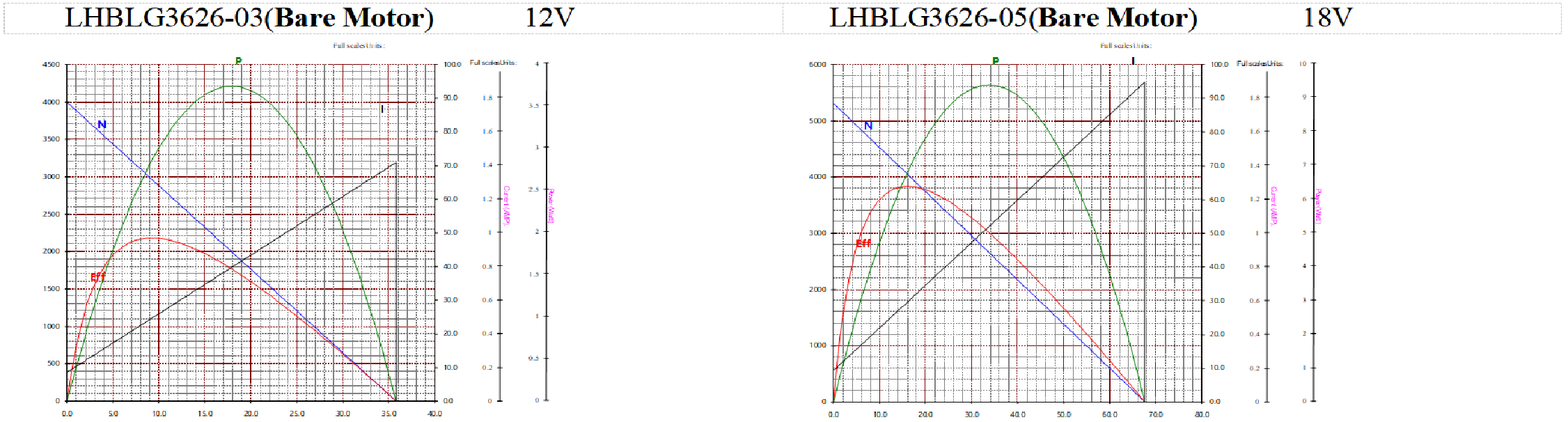

Understanding the specific capabilities of the LHBLG3626 Series is crucial for integrating it into specialized mechanical architectures. The data below outlines the precise voltage, speed, current, and torque metrics across various gear ratios. By meticulously engineering each component, we ensure that the listed parameters—from the 17:1 ratio for higher-speed requirements to the 369:1 ratio for maximum torque output—deliver exact, repeatable performance. Engineers and procurement specialists can rely on these exact figures for integration into systems requiring strict operational ranges. The table details no-load, rated load, and stall conditions to provide a comprehensive overview of the motor's behavioral profile under varying degrees of mechanical stress.
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBLG3626-01 (Gear Ratio 17) | 8-26 | 12 | 375 | 0.32 | 0.267 | 266 | 1.26 | 7.45 | 0.92 | 2.5 |
LHBLG3626-02 (Gear Ratio 30) | 8-26 | 12 | 253 | 0.43 | 0.353 | 189 | 1.34 | 7.01 | 1.40 | 2.5 |
LHBLG3626-03 (Gear Ratio 96) | 8-26 | 12 | 42 | 0.17 | 0.92 | 26 | 0.65 | 3.54 | 2.23 | 2.5 |
LHBLG3626-04 (Gear Ratio 369) | 8-26 | 12 | 4.7 | 0.09 | 3.04 | 2.8 | 0.30 | 0.90 | 7.56 | 2.5 |
LHBLG3626-05 (Gear Ratio 51) | 8-26 | 18 | 104 | 0.19 | 0.40 | 89 | 0.44 | 4.67 | 2.24 | 2.5 |
The versatility of the LHBLG3626 Series allows it to serve as the driving force behind a wide array of specialized health and wellness equipment. The smooth, consistent rotation is vital for user comfort in handheld devices, eliminating the jarring vibrations often found in standard motors.
Percussive & Massage Therapy: Ideal for fascia guns, handheld massagers, and vibration therapy equipment requiring rapid, reliable kinetic energy.
Personal Care Tools: Provides delicate, consistent rotation needed for electric oral care devices and vibration-driven facial cleansing tools.
Medical & Recovery: Delivers powerful torque output for joint-driven rehabilitation training equipment and small rehabilitation aids.
Aesthetic Equipment: Its compact footprint perfectly suits beauty device rollers and lifting massage modules.
Recognizing that every terminal device has unique architectural and performance demands, we offer comprehensive OEM/ODM customization capabilities. Our engineering team can flexibly adjust voltage ratings, operational speeds, reduction ratios, and output shaft dimensions to seamlessly match your specific structural requirements, ensuring a perfect fit for your proprietary designs.
Reduction ratio matching speed and torque: The larger the reduction ratio, the greater the output torque and the lower the speed. Choose a smaller speed ratio for high-speed fine-tuning, and a larger speed ratio for lifting, pushing, and heavy-duty applications.
Gear material distinguishing operating conditions: For light-load, quiet home or beauty equipment, plastic gears offer low noise and cost-effectiveness. For long-term 24-hour commercial and industrial equipment, metal gears provide wear-resistant, long-life, and impact-resistant performance.
Self-locking requirements: Applications like heating tables, automatic gates, and medical lifting mechanisms should utilize high-ratio metal gearboxes with reverse self-locking and anti-slip features to maintain position in case of power failure.
Output shaft structure: Options include round shaft, flat shaft, geared output, or lead screw output, which must be selected according to the equipment's specific transmission connection structure.
Before leaving our facility, every single gear motor undergoes a rigorous battery of tests. This includes precise noise level evaluations, torque output verification, extreme high and low-temperature cycling, and ultra-long lifespan continuous operation assessments. This uncompromising approach to quality control ensures zero-defect delivery for demanding industrial and commercial applications.
Yes, our products are fully compliant with international authoritative standards, including CE, RoHS, and ISO9001. These rigorous certifications provide complete assurance regarding the safety, environmental compliance, and reliability of your end products, safeguarding your global export and distribution channels.
Supported by highly automated production lines and a meticulously managed supply chain, we guarantee stable supply and rapid delivery for large-scale procurement orders. To protect the precision mechanics during transit, we utilize industrial-grade, anti-static, shock-absorbing, and moisture-proof standard packaging. This ensures that every gear motor arrives at your facility in pristine condition, ready for immediate assembly, even after long-distance cross-border logistics.
