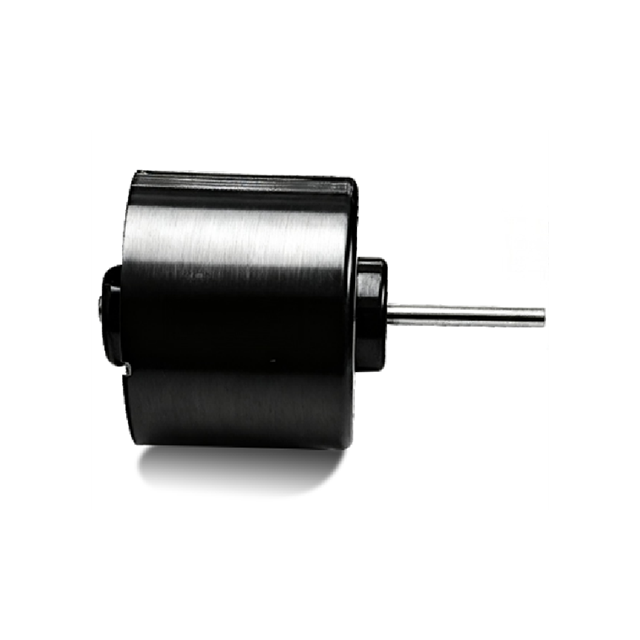

LHBL4235 42mm Rare-Earth Brushless DC Motor With Customizable Windings

Product Advantage

• Engineered with premium rare-earth permanent magnet excitation, this 42mm brushless DC motor completely eliminates rotor copper losses. The result is a highly efficient thermal footprint that generates merely one-tenth the heat of conventional induction alternatives. When you touch the outer metallic casing after hours of continuous operation, it remains remarkably cool, ensuring surrounding sensitive components are protected from thermal degradation.

• Highly customizable internal architecture: our engineering team can precisely design the copper windings, stator core length, and magnet grade according to your specific load conditions. This bespoke approach prevents performance redundancy while optimizing energy draw. Every unit undergoes rigorous NVH (Noise, Vibration, and Harshness) analysis, delivering a whisper-quiet acoustic profile and a vibration-free tactile feel during high-speed rotation.

• Equipped with sophisticated built-in hardware protection, the control circuitry instantly detects anomalies such as overcurrent, overvoltage, undervoltage, and stalled rotors. With fault protection response times measured in micro-seconds, the system ensures uninterrupted reliability. Furthermore, this motor integrates flawlessly with mainstream brushless drivers, supporting high-precision Hall sensor feedback and PWM speed regulation for absolute closed-loop control.

Technical Parameters

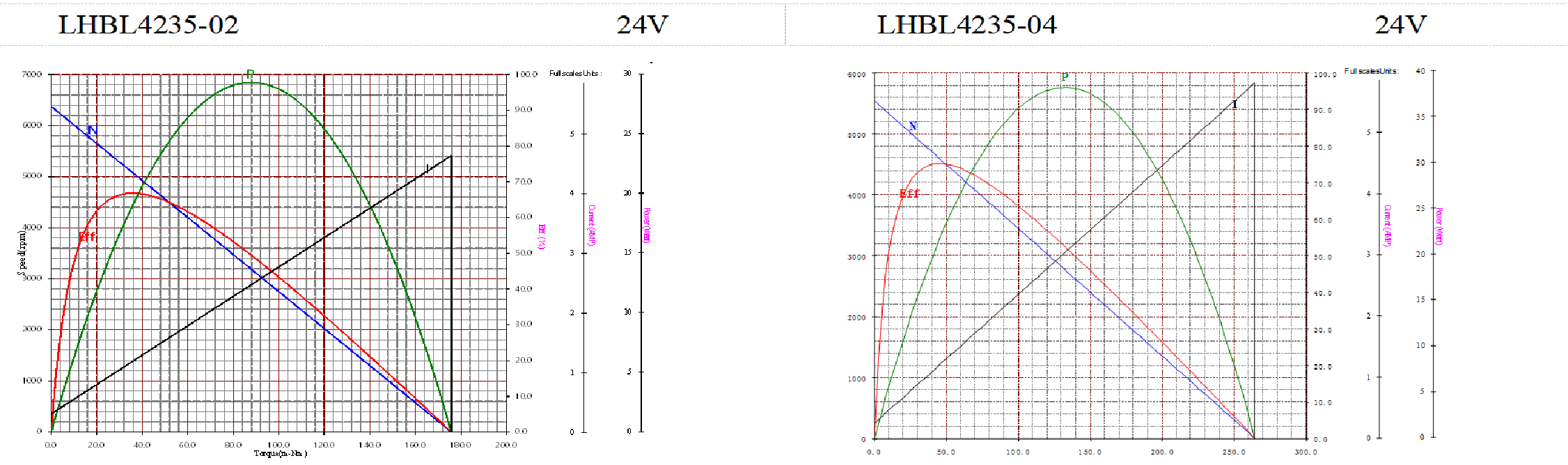

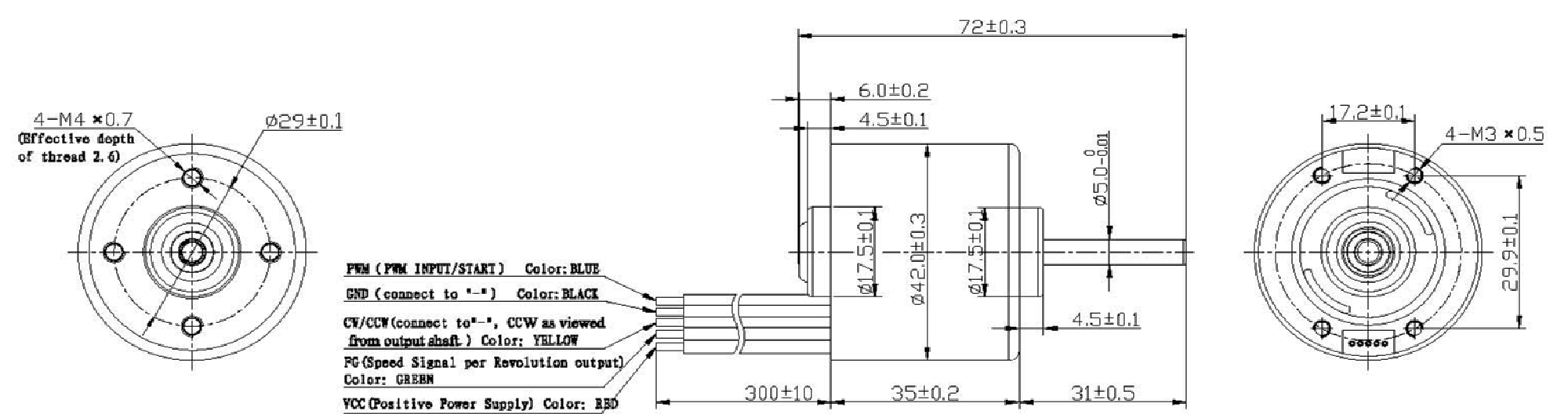

The LHBL4235 series offers a comprehensive range of voltage and torque ratings to suit diverse operational demands. Each model listed below has passed extensive dynamic balancing and extreme temperature cycling tests, guaranteeing stable performance across fluctuating environmental conditions. To streamline your mechanical integration process, we provide detailed 2D and 3D CAD dimensional drawings, precise mounting flange specifications, and clear interface definitions. Review the exact performance metrics in the data table below to select the optimal configuration for your specific drive mechanism.

Product Uses

This rare-earth brushless motor is engineered for applications demanding absolute precision and reliability. Fully compliant with CE, RoHS, and ISO9001 international standards, it confidently meets the strict entry thresholds for specialized industries.

Medical Devices

Medical blenders, laboratory centrifuges, rehabilitation and physical therapy equipment. The motor delivers a smooth, consistent torque that ensures laboratory samples are spun without disruptive vibrations, while its low-noise operation maintains a quiet, focused clinical environment.

Smart Home Appliances

Baby food blenders, smart bottle warmers, aromatherapy humidifiers. Designed to operate with a gentle, barely audible hum, it enhances user comfort. The precise speed control allows for optimal blending textures and consistent vapor dispersion.

Power Tools

Electric screwdrivers, lithium-ion cordless drills, mini grinders, small electric saws. Built to withstand frequent start-stop cycles, the durable internal architecture and exceptional heat dissipation handle the demanding physical stress of heavy-duty drilling and grinding tasks.

Commercial Equipment

Digital copiers, vending machines, desktop paper shredders. It provides the sustained, reliable power necessary for continuous commercial use, ensuring paper feeds smoothly and vending mechanisms dispense items with mechanical precision.

FAQ

1. Q: Can brushless DC motors be used with gear reducers?

A: Absolutely. We offer integrated motor solutions featuring brushless planetary, spur, and worm gear reducers. These reducers effectively amplify the output torque while reducing rotational speed, perfectly meeting the low-speed, high-torque drive requirements of heavy-duty conveyor lines and precise linear actuators. The gear meshing is engineered for minimal backlash, providing a smooth, solid mechanical engagement.

2. Q: What causes excessive heat generation during the operation of a brushless motor?

A: Causes of overheating typically include prolonged overloading beyond the rated capacity, blocked heat dissipation channels, mechanical stalling, unbalanced resistance in the three-phase windings, excessively high ambient temperatures, or insufficient output current capacity from the driver. Our motors mitigate these issues with superior internal airflow designs and optional IP-rated enclosures that protect against dust while maintaining thermal efficiency.

3. Q: What causes insufficient starting torque in a brushless motor?

A: Insufficient starting current output from the driver, decay of the magnet's magnetic flux over time, excessive load friction, and Hall sensor misalignment can all reduce starting torque. This usually results in a slow startup sequence or a noticeable physical vibration in the rotor. Our rigorous quality control and precise Hall sensor calibration ensure a crisp, immediate response the moment power is applied.

Manufacturing Capabilities & Delivery Assurance

Our production facility operates on a highly automated assembly line, ensuring every 42mm brushless motor is manufactured with uncompromising consistency. By leveraging a mature supply chain management system, we guarantee stable product quality and strictly adhere to punctual delivery schedules for large-volume procurement orders. Beyond standard manufacturing, our engineering team provides rapid prototyping services, allowing you to test physical samples in your actual application environment before full-scale production. Designed with exceptional environmental adaptability, these motors feature optimized heat dissipation structures and optional IP protection ratings. Whether operating in high-dust industrial workshops or fluctuating temperature zones, the sealed housing and durable components ensure long-term, maintenance-free operation. From the initial CAD design phase to final bulk delivery, our comprehensive engineering support streamlines your entire procurement and integration process.
