28
With no mechanical friction losses from brushes, rated efficiency typically ranges from 85% to 92%, which is 15% to 30% higher than that of brushed motors.
Even under light loads of 20% to 50%, efficiency remains above 80%, making it ideally suited for variable-load conditions and helping to prevent energy waste.
When paired with a high-performance driver, the input power factor can be corrected to 0.95 or higher, significantly reducing reactive power losses in the power grid.
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |

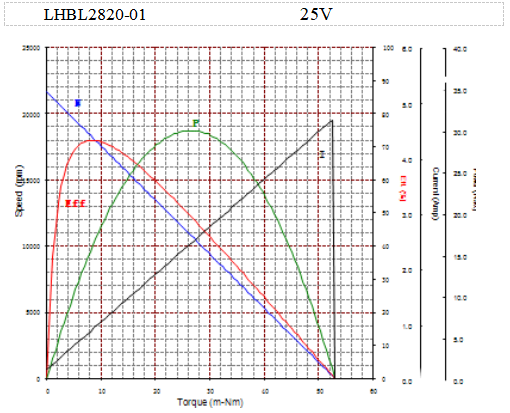

LHBL2820-01 | 8-26.4 | 25 | 21648 | 0.164 | 8.00 | 18356 | 0.859 | 15.463 | 52.906 | 4.733 |
Medical Devices
Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, Centrifugal Machine
Smart Home Appliances
Fanner, Vacuum Cleaner
Personal Care
Hair Dryer, Electric Shaver, Massager
Commercial Equipment
Printer, Copier, Projector, Scanner
1. Q: What is the difference between a sensor-based brushless DC motor and a sensorless brushless DC motor?
A: Sensor-based motors use Hall sensors to detect the rotor's position, ensuring stable startup at low speeds; sensorless motors rely on back-EMF to calculate the rotor's position, featuring a simpler structure and lower cost, but they have poorer operational stability at extremely low speeds.
2. Q: Can brushless DC motors operate continuously for 24 hours without interruption?
A: Continuous 24-hour operation is supported only within the rated load and rated temperature ranges. For prolonged continuous operation, additional heat sinks or forced-air cooling systems must be installed to prevent damage to the coil insulation caused by excessive temperature rise.
3. Q: What are the temperature rise standards for a qualified brushless motor?
A: Under continuous rated load, the temperature rise at the motor surface must not exceed 25 K above the ambient temperature; a temperature rise exceeding this limit indicates an improper design of the motor's internal magnetic circuit or inadequate heat dissipation.
