36

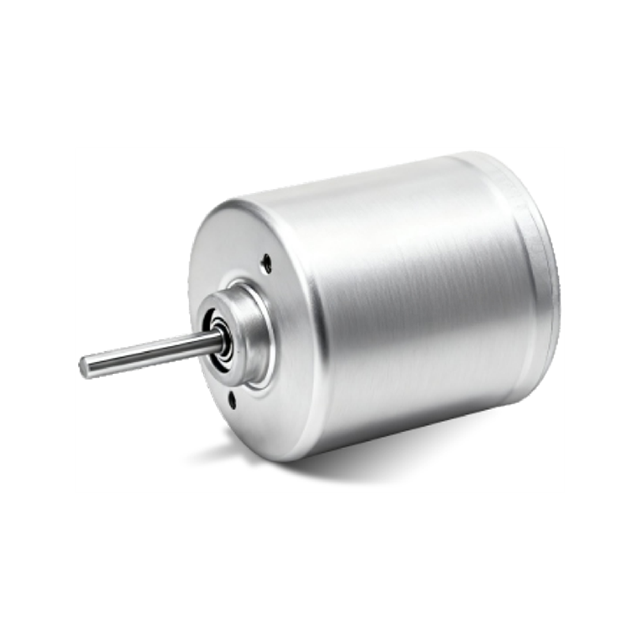

Engineered for demanding industrial applications, the LHBL3650 36mm brushless DC motor delivers exceptional continuous operation stability. By integrating high-performance neodymium magnets and imported precision ball bearings, this unit achieves superior transmission efficiency while maintaining ultra-low noise levels. During operation, the motor produces a smooth, consistent rotation with minimal vibration, a direct result of rigorous factory NVH (Noise, Vibration, and Harshness) testing and extensive ultra-long lifespan aging protocols. The compact 36mm metallic housing offers a solid, premium tactile feel while protecting internal components from environmental contaminants.
An internal temperature sensor can be installed to monitor winding temperature in real time, enabling overload early warning and intelligent derating protection. This thermal management ensures the outer casing remains cool to the touch, preventing catastrophic failure during heavy continuous loads.
When paired with a dedicated driver, it can precisely execute ramped starts and stops as well as S-curve acceleration and deceleration, reducing mechanical shock and extending the service life of transmission components. We provide comprehensive driver compatibility guides and wiring definitions for precise closed-loop control integration.
It supports reversible generator and motor modes, with energy recovery efficiency exceeding 90%.

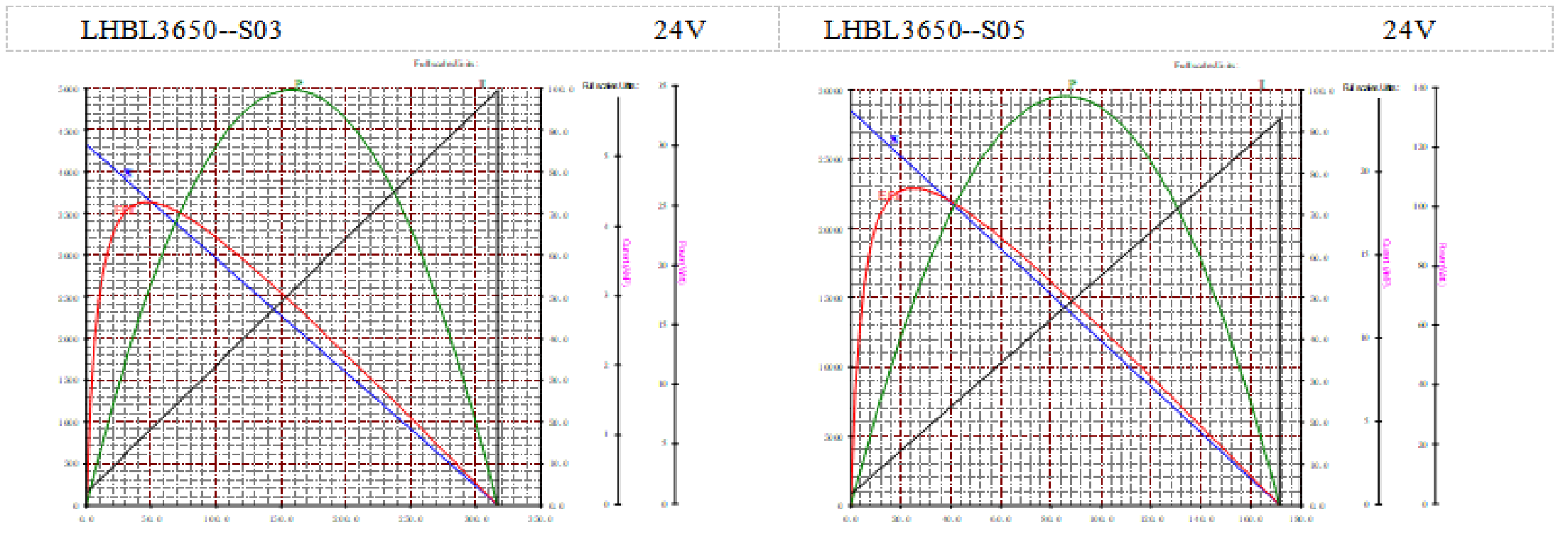

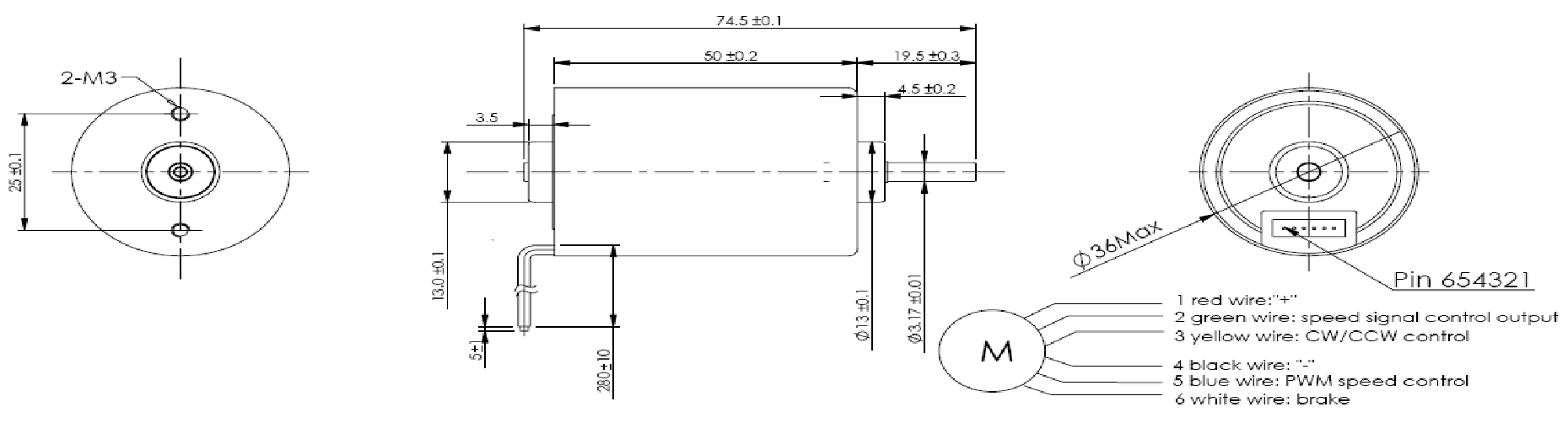

The table below outlines the exact electrical and mechanical specifications for the LHBL3650 series across five distinct configurations (S01 to S05). Operating within an 8-26V voltage range, these motors deliver reliable torque and speed profiles tailored to specific load requirements. To accelerate your system integration process, we provide detailed 2D and 3D mechanical drawings, CAD models, and precise installation hole specifications based on the standard 36mm outer diameter. This ensures your engineering team can quickly validate spatial constraints and mounting configurations before deployment.
Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
LHBL3650--S01 | 8-26 | 12 | 5300 | 0.46 | 23.5 | 4600 | 1.53 | 11.35 | 77.8 | 2.5 |
LHBL3650--S02 | 8-26 | 24 | 13800 | 0.32 | 30.0 | 10500 | 1.99 | 35.69 | 103.7 | 3.0 |
LHBL3650--S03 | 8-26 | 24 | 4327 | 0.18 | 45.0 | 3714 | 1.01 | 17.49 | 316.8 | 2.5 |
LHBL3650--S04 | 8-26 | 24 | 19400 | 0.44 | 18.0 | 17300 | 1.80 | 32.6 | 75.9 | 3.0 |
LHBL3650--S05 | 8-26 | 24 | 28518 | 0.64 | 32.37 | 23172 | 4.73 | 78.56 | 171.42 | 6.00 |
Manufactured under a strict ISO9001 quality management system and fully compliant with CE and RoHS international standards, the LHBL3650 series is trusted across multiple demanding sectors where failure is not an option.
Pumps, Fans. The motor withstands extreme temperature variations and continuous vibration inherent in automotive environments, ensuring fluid delivery systems and cooling modules operate without interruption.
Medical pumps, surgical instruments, mixers, centrifuges. With its precise closed-loop control capabilities and low electromagnetic interference, this motor provides the exact torque required for sensitive surgical tools and the stable RPM needed for laboratory centrifuges.
Major appliances, small appliances, fans, coffee makers, bubble tea machines. The ultra-low noise profile and compact 36mm footprint allow designers to build sleeker, quieter consumer appliances that enhance the end-user experience without sacrificing power output.
Cordless screwdrivers, small compressors. High torque density and robust NVH-tested construction guarantee reliable performance in heavy-duty power tools, significantly reducing maintenance downtime on assembly lines.
1. Q: Can brushless motors operate in high-temperature environments above 80°C?
A: The standard model has a maximum operating temperature of 60°C. For environments up to 80°C, we offer upgrades to high-temperature enameled wire and high-temperature bearing grease to prevent rapid insulation aging and premature bearing failure. These material upgrades maintain the motor's structural integrity even in confined, heat-intensive spaces.
2. Q: What is torque ripple in a brushless motor, and how can it be reduced?
A: Torque ripple refers to periodic fluctuations in the output torque as the motor rotates. We employ stator slotted slots, distributed windings, and an optimized magnetic circuit design to reduce ripple amplitude by more than 40%, ensuring smooth, low-vibration operation. This translates to a quieter acoustic profile and less wear on attached mechanical gears.
3. Q: Can brushless motors achieve stepless speed control from 0 to maximum speed?
A: Sensored brushless motors can achieve smooth, stepless speed control from zero speed with no startup jerk; senseless motors have a low-speed threshold and cannot maintain stable rotation at speeds below 100 rpm. Our technical team assists in selecting the right sensor configuration based on your specific low-speed torque requirements.
4. Q: Do you offer customization services for non-standard projects?
A: Yes, we provide comprehensive OEM and ODM services. Our engineering team can customize shaft lengths, winding parameters, connectors, and wiring harnesses to perfectly match your unique installation requirements and spatial constraints.
5. Q: How are the motors packaged, and what are the delivery terms?
A: To ensure supply chain security, all motors are secured in anti-static, shock-absorbing industrial-grade standard pallets during transit. We offer flexible Minimum Order Quantities (MOQs) and maintain stable batch lead times to keep your production lines running on schedule.
