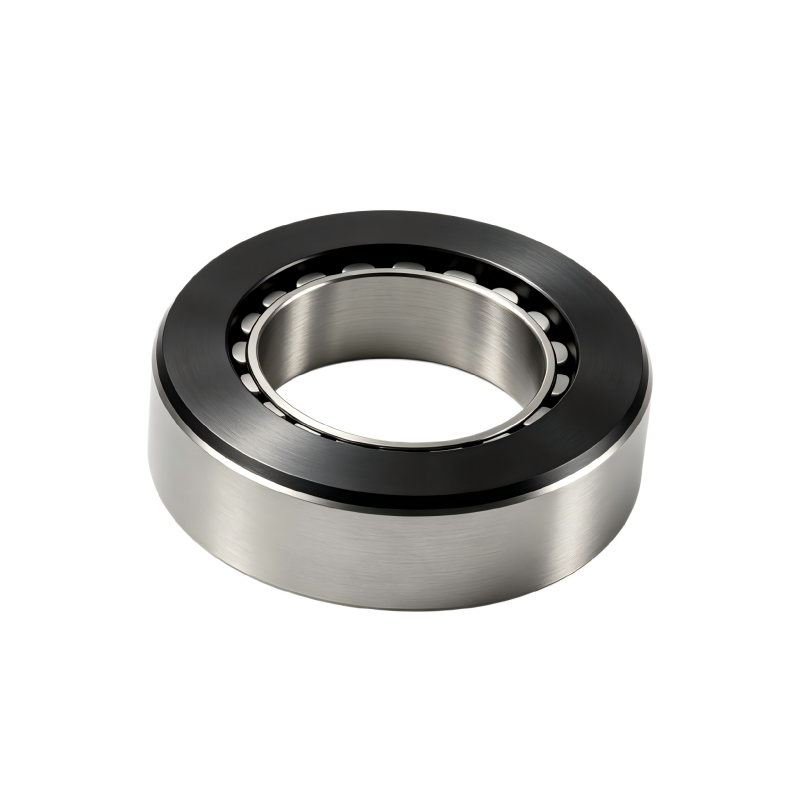

Frameless brushless DC motors are designed for maximum integration with your components, minimizing waste and redundancy. Our range of frameless brushless DC motors is available in a variety of sizes and rated torque options.
High integration, high torque density
High efficiency, using an encoder for feedback
Low cogging effect – a unique magnetic circuit design reduces cogging effect

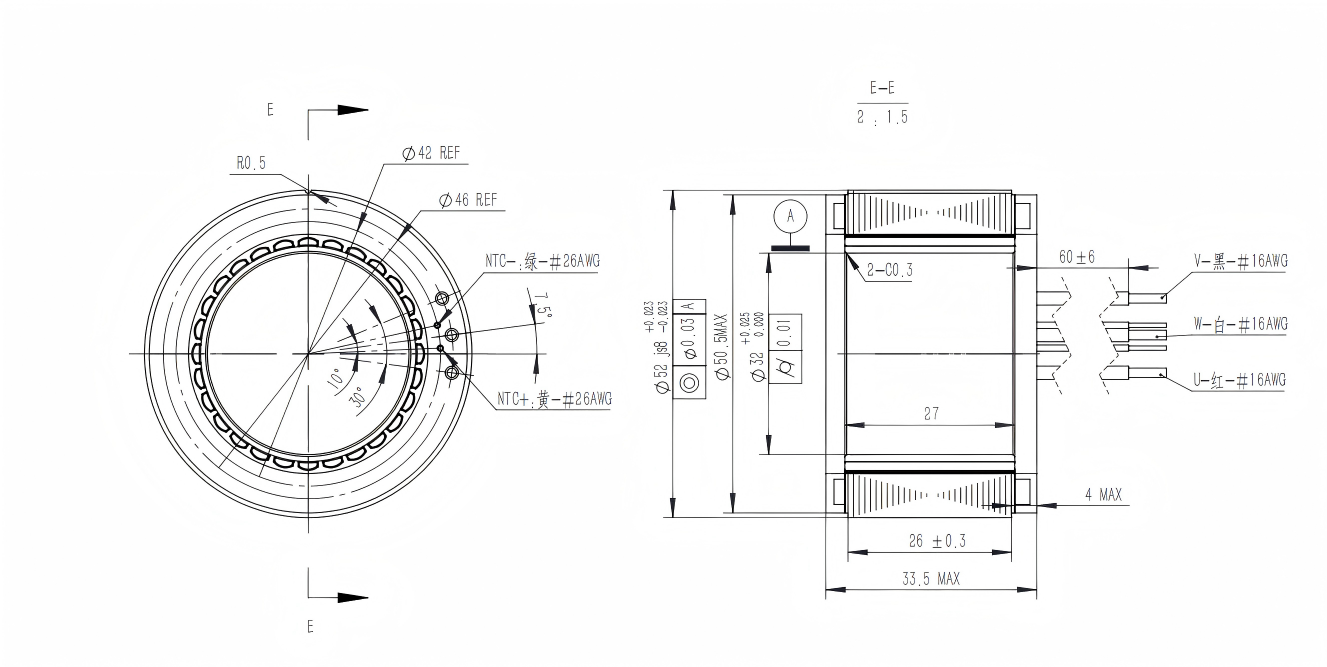

Model | 5233 |
Performance Item | Parameter Value |
|---|---|
Stator Outer Diameter [mm] | 52 |
Stator Overall Length [mm] | 33.5 |
Stator Stack Length [mm] | 26 |
Rotor Inner Diameter [mm] | 32 |
Rotor Overall Length [mm] | 27 |
Voltage [Vdc] | 48 |
Rated Power [W] | 250 |
Rated Torque [N·m] | 0.68 |
Rated Current [Arms] | 6.45 |
Rated Speed [RPM] | 3500 |
Peak Current [Arms] | 19.4 |
Peak Torque [N·m] | 2 |
Peak Speed [rpm] | 5000 |
Torque Constant [N·m/Arms] | 0.11 |
Rotor Moment of Inertia [kg·cm²] | 0.13 |
Back EMF Constant [V/Krpm] | 9.55 |
Line Resistance @ 20°C [Ω] | - |
Line Inductance @ 1 kHz [mH] | - |
Number of Pole Pairs [p] | 14 |
For Robotics applicationn:
humanoid robots,
quadruped robots,
collaborative robots and manipulators
 |  |
 |  |
Q1: Can your frameless torque motors be customized for different voltage, torque and dimension requirements?
Answer: Our full frameless torque motor portfolio supports standardized ODM and OEM engineered customization. Adjustable parameters include operating voltage, continuous&peak torque, bore size, stack length and winding schemes. We offer engineered sample validation and serial production to meet clients’ bespoke mechanical and motion system specifications.
Q2: Which typical application scenarios are frameless torque motors most suitable for?
Answer: These high-precision frameless direct-drive motors are engineered for high-end industrial and precision fields, covering humanoid robot joints, medical automation, optical precision turntables, aerospace actuation units and semiconductor precision handling automated equipment.
