Frameless brushless DC robot joint motors are designed for maximum integration with your assembly systems, minimizing waste and redundancy. We offer a variety of sizes and performance levels for our customers to choose from.
High integration, high torque density
High efficiency, using encoders for feedback (magnetic or inductive)
Low cogging effect – unique magnetic circuit design reduces cogging effect

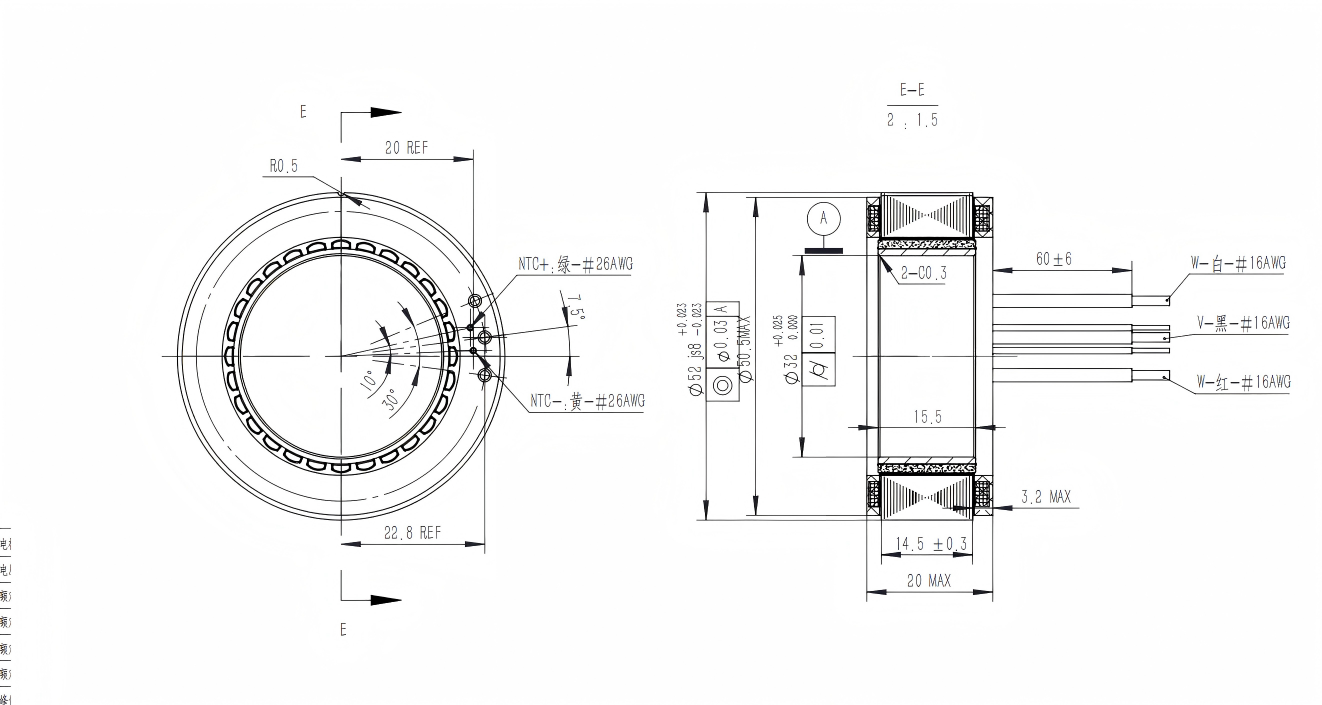

Model | 5230 |
Performance Item | Parameter Value |
|---|---|
Stator Outer Diameter [mm] | 52 |
Stator Overall Length [mm] | 30 |
Stator Stack Length [mm] | 22 |
Rotor Inner Diameter [mm] | 32 |
Rotor Overall Length [mm] | 23 |
Voltage [Vdc] | 48 |
Rated Power [W] | 233 |
Rated Torque [N·m] | 0.585 |
Rated Current [Arms] | 6 |
Rated Speed [RPM] | 3800 |
Peak Current [Arms] | 18 |
Peak Torque [N·m] | 1.76 |
Peak Speed [rpm] | 5500 |
Torque Constant [N·m/Arms] | 0.1 |
Rotor Moment of Inertia [kg·cm²] | 0.13 |
Back EMF Constant [V/Krpm] | 8.9 |
Line Resistance @ 20°C [Ω] | - |
Line Inductance @ 1 kHz [mH] | - |
Number of Pole Pairs [p] | 14 |
Packaging: Designed for high-speed automated packaging lines, Linghu frameless torque motors feature fast dynamic response and compact embedded installation. It supports frequent forward and reverse rotation, stable variable-speed operation, and adapts to bag-sealing, cutting and sorting procedures for diversified packaging materials.
 |  |
 |  |
Q1: Can your frameless torque motors be customized for different voltage, torque and dimension requirements?
Answer: Our full frameless torque motor portfolio supports standardized ODM and OEM engineered customization. Adjustable parameters include operating voltage, continuous&peak torque, bore size, stack length and winding schemes. We offer engineered sample validation and serial production to meet clients’ bespoke mechanical and motion system specifications.
Q2: Which typical application scenarios are frameless torque motors most suitable for?
Answer: These high-precision frameless direct-drive motors are engineered for high-end industrial and precision fields, covering humanoid robot joints, medical automation, optical precision turntables, aerospace actuation units and semiconductor precision handling automated equipment.
